Soft Starter

Soft Starter
Soft Starter
Product Code : ME 20
Brand Name : Altistart
Product Description

The Altistart 22 soft start - soft stop unit supports the controlled starting and stopping, via voltage and torque, of three-phase squirrel cage asynchronous motors for power ratings between 4 and 400 kW.It comes ready to use for standard applications with class 10 motor protection. The Altistart 22 soft start - soft stop unit has been designed to satisfy the performance requirements of applications where ruggedness, the safety of personnel and equipment, and easy commissioning are at a premium. The bypass function (based on a bypass contactor) has been made easier to use by integrating it into the starter. This approach suits applications where it may be necessary to bypass the starter at the end of the starting process in order, for example, to limit the starter's heat dissipation.

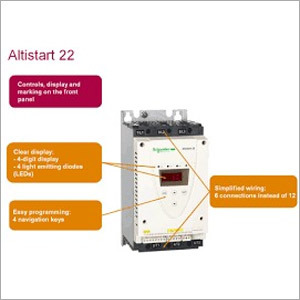

The Altistart 22 soft start - soft stop unit contains an integrated display terminal which allows the user to change both the programming and the adjustment or monitoring parameters in order to adapt and customize the application in line with customer needs. The unit also features thermal protection for motors as well as a monitoring facility for machines and, thanks to the SoMove setup software, enables the installation to be commissioned immediately.

Application


The integrated functions of the Altistart 22 soft start - soft stop unit are compatible with the more common types of application found in the construction, infrastructure or industrial sectors:

  • Centrifugal pumps, piston pumps
  • Fans
  • Screw compressors, etc.
  • Material handling (conveyors, etc.)
  • Specialist machines (agitators, mixers, centrifugal machines)

The Altistart 22 soft start - soft stop unit represents a truly cost-effective solution, as it supports:


  • A reduction in installation costs by optimizing product sizes, integrating the bypass function and reducing wiring time
  • A reduction in the stress associated with electrical distribution by reducing the current peaks and line voltage drops caused by motors starting up
  • A reduction in running costs for machines by reducing mechanical stress

Controlling the three phases of the motor windings ensures that performance remains satisfactory, whatever the situation (with or without a load, all voltage and power ranges)
